Solar-powered power supply system for generating 12V DC.
Areas of application: Vineyard, arbour, allotment garden, alpine hut, water pump, animal stable, mobile phone, camera ...
In order to provide electrical energy even at night or when the sky is overcast, the system is equipped with rechargeable batteries.


Technical data:
Solar module output in sunshine: 190 Wp
Maximum connectable loads: 400 W
Short-term peak load (starting current) 1000 W
Short-circuit protection and overload circuit.
In order to provide electrical energy at night or under cloudy skies, the system is equipped with rechargeable batteries.
Energy storage: 1.2 KWH
Operating time with fully charged battery 5 hours at 200 watts continuous consumption (or
(or 24 hours at 50 W continuous consumption / 12W continuous operation).
The higher the consumption, the shorter the operating time will be.

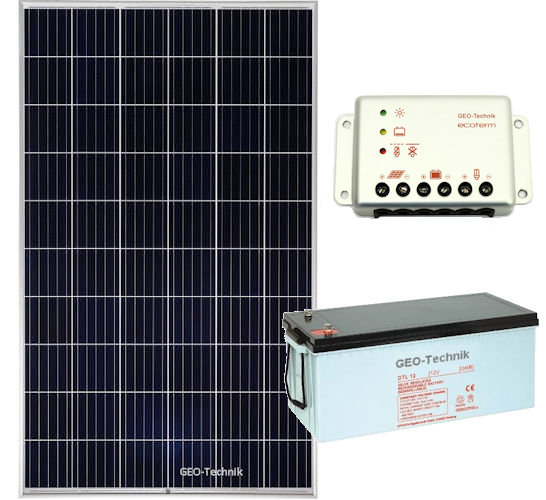

The system is delivered ready for connection and consists of the following components:
1 monocrystalline solar module, sealed and hail-resistant, life expectancy approx. 25 years.
The high-quality solar cell technology also guarantees charging on cloudy days.
Dimensions approx. 1160 x 670 x 35mm.
Mounting bracket for solar module for attachment to a flat roof or slightly sloping roof.
1 solar charge controller with overcharge protection and deep discharge protection.
1 solar battery AGM 12Volt 100Ah longlife.
Housing: aluminium very compact: L 200mm, W 80mm, H 64mm
6 metre cable to the solar modules.
Battery cable
Assembly instructions
