Innovative Solar Lighting for Bike Paths & Footpaths – Sustainable, Decorative LED Pole Lights for Optimal Path Illumination

Self-sufficient solar car park lighting with LED lamp - no power connection required - no underground cables.Recommended for countries with average solar radiation, such as Europe, Ukraine, New Zealand.High luminous intensity thanks to state-of-the-art SMD LED in conjunction with electronic 12V-60V DC PWM driver.The brightness is comparable to an 80W mercury vapour lamp or 50W sodium vapour lamp.Intelligent microprocessor system control.Design, manufacture and quality management in Germany.Due to the radiation characteristics and design of the LT-SOL-AP44 luminaire heads, when installedthe regulations for the protection of the night sky, as well as the recommendations of therecommendations of the LAI from 2015 for immision protection are complied with. In addition, by lowering thethe basic lighting - when the motion detector is inactive - can also be used to protect insects at night.insects can also be achieved.All brackets and fixings are hot-dip galvanised (also available with a coating of your choice at an extra charge).The screws are made of VA stainless steel.The solar light is maintenance-free (only the solar module should be cleaned occasionally with water). General technical data: Illuminated area: Approx. 25 x 10mRecommended pole spacing: Approx. 25 metresAmbient temperature: -20°C ~ +50°C (extension -35°C ~ +65°C possible on request)Protection class: III safety extra-low voltageTest mark:                           CE, RoHS, WEEE20-year availability guarantee for spare parts.Luminaire head specification: Robust LED luminaire head made of die-cast aluminiumLED lamp: SMD Chipset PhilipsLED output: 36WLight colour: 3000K warm white No UV radiation for reduced insect attractionLED efficiency: > 160 lm/wLuminaire efficiency: > 145 lm/wLuminous flux lumen: 5000 LmCentral illuminance: > 36 lux (5m height)Average light intensity: > 18 lux (5m)LED service life approx. 100,000 hoursProtection class: IP65 (water and storm-proof).Warranty: 5 yearsLuminaire control:Smart microprocessor control with wireless programming option.Readout of the current operating status with storage of measurement data for all components from the last few days.Automatic switch-on at sunset and switch-off at sunrise. (Switching level adjustable) The light can be set to an output of 10-30% throughout the night (from dusk) or in 5 time blocks (1-15 hours).If a person comes within the detection range of the motion detector (approx. 15m, 360°), the LED lamp is switched to 50-100% output, depending on the setting for 1-10 minutes.Due to the long winter months, the sum of the time blocks together should be at least 15 hours. The LED is switched on by the set night light detection threshold (voltage drop on the PV module).The light is also switched off at sunrise by the set night light detection threshold (voltage build-up on the PV module, the time blocks are ended).Example 1: From dusk 4 hours with 10% ambient lighting, with motion detector contact 100%, rest of the night (approx. 10 hours) ambient lighting 0% and motion detector contact 70%Example 2: 4 hours 10% ambient lighting, 100% with motion detector contact, then 6 hours only with motion detector contact 50%, rest of the night again 4 hours 10% ambient lighting, 100% with motion detector contactExample 3: All night (15 hours) at 10%, 100% with motion detector contactThe charge controller is also equipped with a Smart Power function that enables automatic dimming at night depending on the battery charge level.If the battery voltage falls below 50%, the lamp is automatically dimmed to 50%; this process is descending until the deep discharge protection kicks in.This setting enables safe operation even on low-light days in winter.The charge controller settings are preset by us according to customer requirements.If you would like to change the settings, you will need the S-SOLS29-5 remote control.We will be happy to help you decide on the right pre-settings.All functions are pre-programmed by us free of charge, depending on the project and customer requirements, so that the light is ready for operation immediately after installation.Temperature-optimised battery charging and trickle charging to protect the batteries.Overvoltage and deep discharge protection for battery.Reverse polarity and short-circuit protection.Additional fuseProtection class: IP66Warranty: 5 yearsMotion detector:Microwave sensorDetection angle 360°Range up to 12m  Solar module specifications:Monocrystalline silicon with very high efficiency Hardened protective glass, hail-resistantThis high-quality module technology guarantees charging even on overcast days. On dark days in winter, recharging is limited, which shortens the lighting time.Efficiency: 20%Output: 120WpLife expectancy: approx. 25 yearsPerformance guarantee * 20 years 80% / 10 years 90%Battery storage: High-performance solar lithium-ion iron battery LiFePo4Battery voltage: 12V maintenance-free, long-life.For solar cycle operationService life 6 - 12 years / 20°C Function even at low temperatures.Self-sufficient operating time in cloudy weather (with fully charged battery):Basic version: 4 days (44 hours)The battery is located in the mast, behind the lockable door.Mast: Steel mast, hot-dip galvanisedVisible height: 5 mGround section: 80 cm for setting in concrete (6m - 8m height on request)For easier erection, we also offer installation sleeves into which the pole can be inserted.Lockable mast door for easy access to the controls.Supplied disassembled with the following components: LED lamp head with pole attachmentSolar module with stable pole attachment,Steel pole, light control unit and battery already mounted in the poleIllustrated assembly instructions in German or English. Other languages on request.All components are pre-wired and prepared for quick assembly.The ready-to-use light is delivered disassembled for safe transport.* The warranty is void in the event of force, incorrect use or improper assembly.

Elegant design and stable construction - no power supply required - environmentally friendly.Uses: cycle path lighting, footpaths, parks, driveways, pedestrian areas, cycle paths etc.Easy self-assembly and environmentally friendly.General technical data:Light environment Ø approx. 15 metres / Height: 300 cmAmbient temperature: -20°C ~ +40°CProtection class IP54, class IIMaintenance-free - (only the solar module should be cleared of snow or leaves if necessary).10-year availability guarantee for spare parts (custom-made).Delivery: Completely ready for use, but disassembled into 3 parts. With assembly instructions.Intelligent control: Smart microprocessor control with wireless programming option.Automatic switch-on and switch-off at dusk.Adjustable midnight break (lights up only in the evening and morning if required).Overcharge protection, deep discharge protection and automatically temperature-adjusted characteristic curve to extend battery life.The luminaire control is conveniently accessible behind a lockable door in the pole.Luminaire globe:Acrylic sphere 300mm diameterEnergy efficiency class CLight source: SMD LEDLight intensity: 400 lumen (brightness corresponds to a 40W incandescent lamp)Light colour: 4000K pleasant neutral white (no cold, blue light)LED service life: 25,000 hoursThe LEDs can be replaced.Solar module:Monocrystalline silicon (hardened protective glass, hail-resistant).Power: 40WLife expectancy: approx. 25 yearsThe high-quality module technology ensures charging even on cloudy days.On dark days in winter, recharging is limited and the lighting duration is thus shortened.Battery store:Battery: Lithium iron phosphate LiFePo4 12V,maintenance-free, longlife, for solar cycle operationService life: approx. 8 - 10 years / 20°CFunction even at low or high temperatures.For sufficient operating safety in autumn or winter, we strongly recommend our extension sets.Autonomous operating time in overcast weather (with fully charged battery):a) basic version: 24 hours (approx. 2-3 days)b) with extension set winter: 40 hours (approx. 4 days)The new emergency lighting function ensures lighting even when the battery charge is low during very long periods of bad weather,but with reduced luminosity.The batteries are located in the mast, behind the lockable door.Mast:Steel mast: Galvanised (additional scratch-resistant powder-coated at extra cost).Height 300cmTop end Ø 60mmEarth piece 600mm for setting in concrete (or inserting into a sleeve)

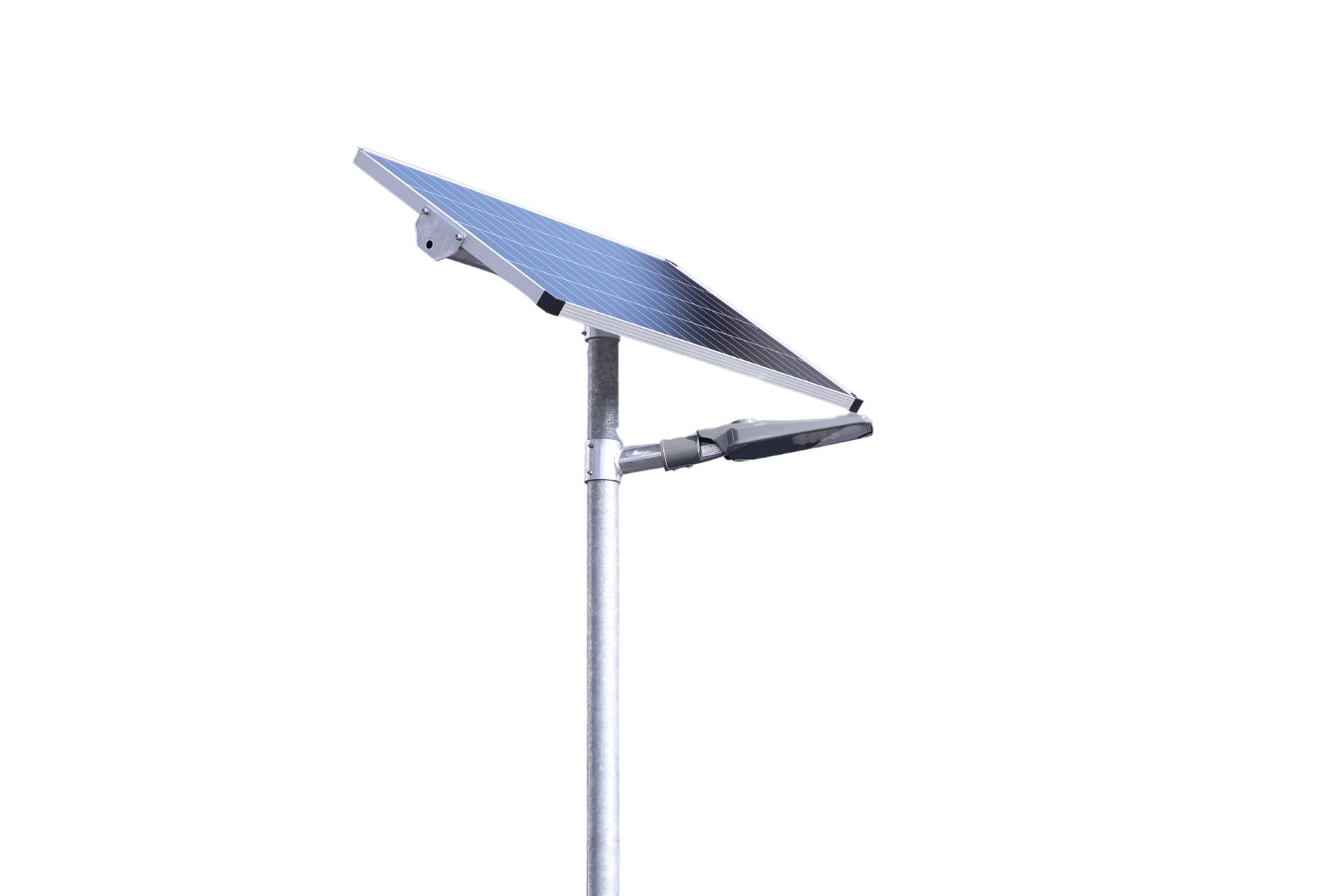

Robust photovoltaic street light with LED lamp - no power connection required. Recommended for countries with average solar radiation, such as Europe, southern Russia, New Zealand. High luminous intensity thanks to state-of-the-art SMD LED in combination with an electronic 12V-60V DC PWM driver. The brightness is comparable to an 80W mercury vapor lamp or 50W sodium vapor lamp. Very long, maintenance-free luminaire operation due to special design features. Microprocessor Control, All brackets and fixings are hot-dip galvanized (with surcharge also with a coating as desired). The screws are made of VA stainless steel. Construction, production and quality management in Germany. The solar light is maintenance-free - only the solar module should occasionally be cleaned with water. General technical data: Illuminated area: approx. 25 x 10m Recommended mast spacing: approx. 25 meters Ambient temperature: -20 ° C ~ + 50 ° C (extension -35 ° C ~ + 65 ° C possible on request) Protection class: III Protective extra-low voltage Test mark: CE, RoHS, WEEE 20-year availability guarantee for replacement parts. Lamp specifications: LED Lamp: SMD Chipset Philips LED power: 30W Light colour 4000K pure white (on request also 3000K warm white or 6000K daylight). No uv-radiation for reduced insects attraction LED efficiacy: > 160 lm/w Lamp efficiacy: > 145 lm/w Luminous flux: > 5000 lm Central illumination: > 36 Lux (5m pole height) Average illumination: > 19 Lux (5m) Life time: 80000 hours Casing: Rigid aluminium die-cast. Seawater and thunderstorm-proof. Dimensions: 470mm x 230mm x 60mm Arm length: 300mm (on request, we supply with max. 2 meter arm) Protection degree: IP65 Guarantee: 5 years Light Control: Smart microprocessor control with infrared programming option. Reading the current operating status with storage of the measurement data of all components of the last days. Automatic switch on at sunset and switch off at sunrise. (Switching level adjustable) Adjustable dimming during the late night and full power in the morning to extend the duration of the light in bad weather. Operating time / duration (please specify when ordering) You have the option from dawn to choose 4 consecutive time blocks with 1-15 hours duration and different light intensity of 10-100%. Example 1 - Night reduction with shutdown and morning light: From dusk 4 hours with 100%, then 2 hours with 50%, then 3 hours off (0%) and early in the morning 5 hours with 100% Example 2 - night shutdown: 4 hours 100%, 4 hours midnight 0%, 5 hours 100% Example 3 - 4 hours bright in the evening, then reduced to 50% for 4 hours, then 10 hours (rest of the night) to 50% In addition, the charge controller is equipped with a Smart Power function, which allows automatic dimming at night depending on the battery charge level. If the battery voltage drops below 50%, the lamp is automatically dimmed to 50%, this process is decreasing until the deep discharge protection starts. This setting enables safe operation even on the faint days in winter. The charge controller settings are preset by us according to customer requirements. If you want to change the settings, you need the remote control S-SOLS29. We will gladly help you to decide on the right presettings. All functions are preprogrammed by us free of charge, depending on the project and customer request, so that the luminaire is ready for use immediately after installation. Temperature-optimized battery charge and trickle charge to extend battery life. Overvoltage and deep discharge protection for battery. Reverse polarity and short circuit protection. Additional fuse Protection class: IP66 Warranty: 5 years Solar module specifications: Monocrystalline silicon with very high efficiency tempered protective glass, hailproof This high quality module technology also ensures charge in overcast skies. On dark days in winter, the recharging is limited, the light duration is thus reduced. Efficiency:> 16% Power: 120Wp (without extension) Life expectancy: approx. 25 years Performance Guarantee * 20 years 80% / 10 years 90% * except in the case of mechanical impact Battery storage: Battery Type: Lithium Ion LiFePo4 12V, maintenance-free, longlife, for solar cycle operation Lifetime approx. 10 years / 20 ° C Function even at low temperatures. For sufficient reliability in autumn or winter, we strongly recommend our extension sets. Self-sufficient operating time in overcast weather (with fully charged battery): a) Basic version: 4 days (44 hours) b) with extension set autumn: 5 days (60 hours) c) with extension set winter: 7 days (80 hours) The new emergency lighting function ensures the lighting even with low battery charge during very long periods of bad weather, but with reduced luminosity. The batteries are located in the mast and are protected from strong sunlight. Mast: Steel mast, hot-dip galvanized, Visible height: 5 m Ground piece: 80 cm for setting in concrete (on request also 6m - 8m height) For easier installation, we also offer installation sleeves into which the mast can be inserted. Lockable mast door for easy access to the controls. Delivery disassembled with the following components: LED lamp head with mast mounting, Solar battery Solar module with stable, screw-down mast mounting, Steel pole, Light control (already mounted in the mast). Illustrated assembly instructions in German or English. Other languages ​​on request. All components are pre-wired and prepared for quick setup.

Robust photovoltaic street light for cycle paths crossings and cycle overpasses. With wide-angle light emission. With LED lamp - no power connection required. High luminous intensity due to state-of-the-art SMD LED in combination with an electronic 12V-60V DC PWM driver. The brightness is comparable to an 80W mercury vapour lamp or 50W sodium vapour lamp. Very long, maintenance-free luminaire operation due to special design features. Intelligent microprocessor system control. Production and quality management in Germany. The solar light is maintenance-free - only the solar module should be cleaned with water occasionally. General technical data: Illuminated area: Approx. 8 x 16m Recommended street width: Max. 10 metres (for wider streets, a luminaire should be placed on both sides) Ambient temperature: -20°C ~ +50°C (extension -35°C ~ +65°C possible on request) Material: Brackets: Hot-dip galvanised steel (UV-resistant paint available at extra cost). Screws: VA stainless steel. Energy efficiency class: B Protection class: III safety extra-low voltage Marks of conformity: CE, RoHS, WEEE 20-year availability guarantee for spare parts. Luminaire head specification: Robust LED luminaire head made of die-cast aluminium LED lamp: SMD chipset Osram LED power: 30W Light colour: 4000K neutral white (on special order also 3000K warm white). No UV radiation for reduced insect attraction LED efficiency: > 135 lm/w Luminaire efficiency: > 130 lm/w Luminous flux lumen: 4000 lm Central illuminance: > 10 Lux (8m height) Average luminous intensity: > 6 Lux (8m) LED life: approx. 60,000 hours Protection class: IP65 (water and storm protected). Warranty: 5 years Luminaire control: Smart MPPT microprocessor control with wireless programming option. Readout of the current operating status with storage of the measurement data of all components of the last days. Automatic switch-on at sunset and switch-off at sunrise. (Switching level adjustable) Adjustable dimming during late night and full power again in the morning to extend the lighting duration in bad weather. Please specify desired lighting times and night-time dimming when ordering. You have the option of selecting 4 consecutive time blocks from dusk onwards, each lasting 1-15 hours and with varying light intensity from 10-100%. Example 1: From dusk 4 hours with 100%, then 2 hours with 50%, then 3 hours 30% and early in the morning 4 hours with 100%. Example 2: 4 hours at 100%, then 10 hours (rest of the night) at 50%. In addition, the charge controller is equipped with a Smart Power function that enables automatic dimming during the night, depending on the battery charge level. When the battery voltage drops below 50%, the lamp is automatically dimmed to 50%, this process is descending until the deep discharge protection kicks in. This setting enables safe operation even on the low-light days in winter. The charge controller settings are preset by us according to customer requirements. If you would like to change the settings, you will need the S-SOLS29 remote control. We will be happy to help you decide on the correct presettings. All functions are pre-programmed by us free of charge, depending on the project and customer requirements, so that the luminaire is ready for operation immediately after installation. Temperature-optimised battery charging and trickle charging to extend battery life. Overvoltage and deep discharge protection for battery. Reverse polarity and short circuit protection. Additional fuse Protection class: IP66 Warranty: 5 years Solar module specifications: Monocrystalline silicon with very high efficiency Tempered protective glass, hail-resistant. This high-quality module technology ensures charging even in overcast conditions. Efficiency: > 18% Output: 200Wp (without extension) Life expectancy: approx. 25 years Performance guarantee * 20 years 80% / 10 years 90% * except in the case of mechanical impact * except in case of mechanical impact Battery storage: Battery type: Lithium Ion LiFePo4 12V, maintenance-free, longlife, for solar cycle operation. Service life: approx. 10 years / 20°C Function even at low temperatures. On dark days in winter, recharging is limited and the lighting duration is thus shortened. For sufficient operating safety in autumn or winter, we strongly recommend our extension sets. Autonomous operating time in overcast weather (with fully charged battery): a) basic version: 4 days (44 hours) b) with extension set autumn: 5 days (60 hours) c) with extension set winter: 7 days (80 hours) The new emergency lighting function ensures lighting even when the battery charge is low during very long periods of bad weather, but with reduced luminosity. The batteries are located in the mast and are protected from strong sun heat. Mast: Steel mast, hot-dip galvanised, Visible height h1: 8m h2 Ground: 1000 mm Foundation depth: 130cm Mast top end Ø: 89mm d2 base Ø: 133 mm Wall thickness s: 3 mm For easier erection, we also offer installation sleeves into which the mast can be inserted. Lockable mast door, for easy access to the control unit. Supplied disassembled with the following components: LED lamp head with mast mounting, solar battery solar module with stable, screwable mast mounting, steel mast, luminaire control unit (already mounted in the mast). Illustrated assembly instructions in German or English. Other languages on request.
