Product information "Solar Spectral Irradiance Projector 2000W CIE 85"

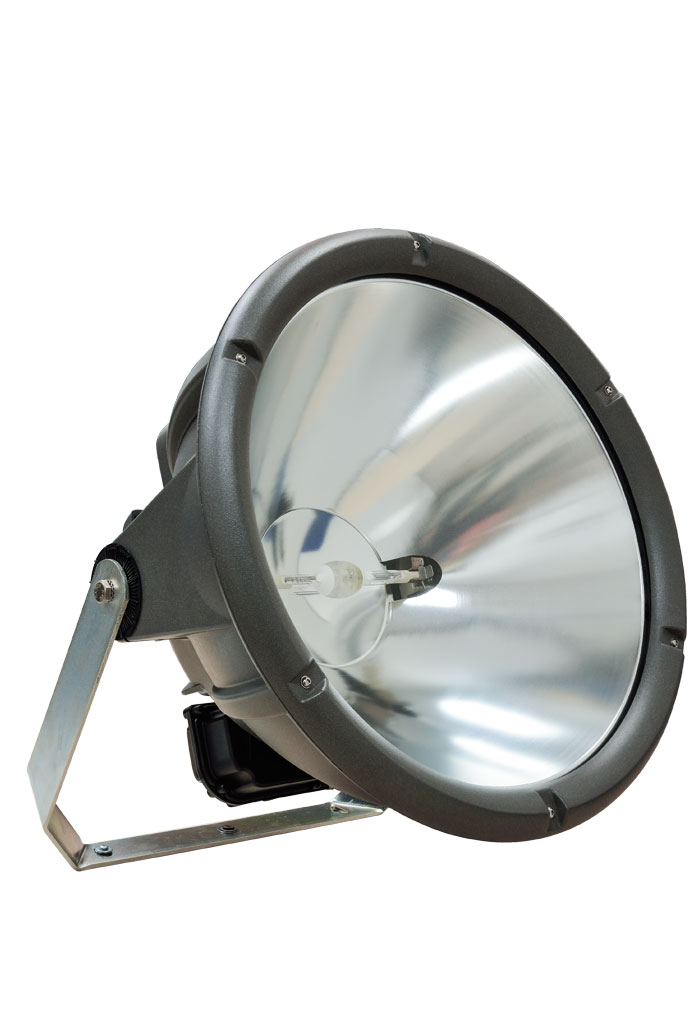

High-performance spotlight with daylight spectrum with infrared and ultraviolet components. Only for industrial applications, UV tests, ageing tests, PV solar module measurements - not for lighting purposes.
Light beam: 35°
Metal halide, for outdoor use.
By the double sided lamp holder this fixture is shockproof and vibrationproof.
GORE® Protective Vents system: supplied as standard.
To be used with mh discharge lamp 2000 watt K12s-36.
(Lamp not included)
Operating voltage: 380V - 400V 50 Hz
Igniter box: Nylon fiber glass standard equipment, applied directly on the housing.
The ballast gear has to be ordered extra.
Housing: Aluminium die-cast, grey, with adjustable mounting bracket.
Paintwork: Thermosetting polyester powder, prior degreasing and phos-phochromatizing process that will ensure an extremely high resistance to chemical and atmospheric agents.
Bracket: 4 mm thickness shaped steel with hot-dip galvanizing final treat-ment.
Reflector: Large pure aluminum
Glass: Extra clear 5 mm tempered.
Protection degree IP66
Shock proof: IK10
Ambient temperature: - 25 °C bis + 45 °C
Certifications: ENEC, CE
Wind load: 0.206 m²
Dimensions: Ø 505, L 520 mm, d 300 mm
| Light source: | HQI MH |
|---|---|
| Voltage: | 400V |
| Watt Total: | 2000, 2000 - 3600 |
| Watt per lamp: | 2000, 2000 - 3500 |
| ZusatzFeld08: | K12s |
